Carrot Packing Machine

Automatic Carrot Dosing Packing Machine

Automatic Carrot Dosing Bag Packing Machine are designed for dosing of agricultural products ( carrot, potatoes, onion, garlic, apply etc) into knitted sleeves, box pallets, bags ...
Product Details

Automatic-Carrot-Weighting-Bag-Packing-Machine

Automatic Carrot Dosing Bag Packing Machine are designed for dosing of agricultural products ( carrot, potatoes, onion, garlic, apply etc) into knitted sleeves, box pallets, bags or cases. The material shall be cleaned and sorted out for the operation to be smooth and trouble free. The minimum size of fruits is 20mm. the average effective volume of the hopper in which a dose is weighed is 70 dm3. The weight of a dose can be adjusted by 0.01kg in the range of 5 to 50kg.

The device can work as a last stage of an after-harvest assorting line, or it can work alone. One person is sufficient for its operation.

Working Process of Automatic Carrot Weighting Bag Packing Machine

The pressure sensor sends the signal to the hopper to indicate the product weight. The electrical control unit receives data from pressure sensor, then it will automatically calculate and output the information, so as to control the weighing process. The belt operates based on the target weight, coarse filling, medium filling and fine filling.

The sequence is : coarse fillingmedium fillingfine filling, so that the target weight is reached. When in the coarse filling, the wider belt is in a high speed, while in medium filling, it will in a medium speed. Then coming the target weight, the wider belt will stop. On the process of coarse filling and medium filling, the narrow belt keeps running slowly, while on fine filling, it will fill the products one by one to stop until reaching the target weight.

Feature of Automatic Carrot Weighting Bag Packing Machine

  1. Two conveyor belt is installed on the machine frame. Each conveyor belt is driven separately, and the data can be adjusted individually. The 0.3m belt is controlled by double operation speed electric reducer, so that the belt can convey the products into the hopper. The 0.1m belt is by low speed electric reducer. After the 0.3M belt stopped, it will get accurate measurement until the target weight.
  2. The hopper is installed in the bottom frame by a pressure sensor. There is a discharging door in the hopper, which is controlled by two cylinders for discharging and closure.

Specification of Automatic Carrot Dosing Packing Machine

SpecificationsRM50
Machine size2920*790*2170mm
Net weight330KG
Working conditionambient temperatures, not be affected by air conditions
Running temperature+5℃-40℃
Rated voltage  3P 380VAC ±10%
Control voltageDC24V
Power2.2kw
Air pressure0.8MPa
Weighing range5-50KG
Weighing adjusting0.01kg
Dosing accuracyMore or less than the weight of one product
Weight displayNumbers, four digits
Weight display digit0.01kg
Quantity displayNumbers, 0-9999
Control moduleOne bag modus or pallet modus
Noise grade  77dB
personnel  one
Speed5KG (based on the actual weighing products) reaches 280pcs/h

50KG (based on the actual weighing products) reaches 110pcs/h

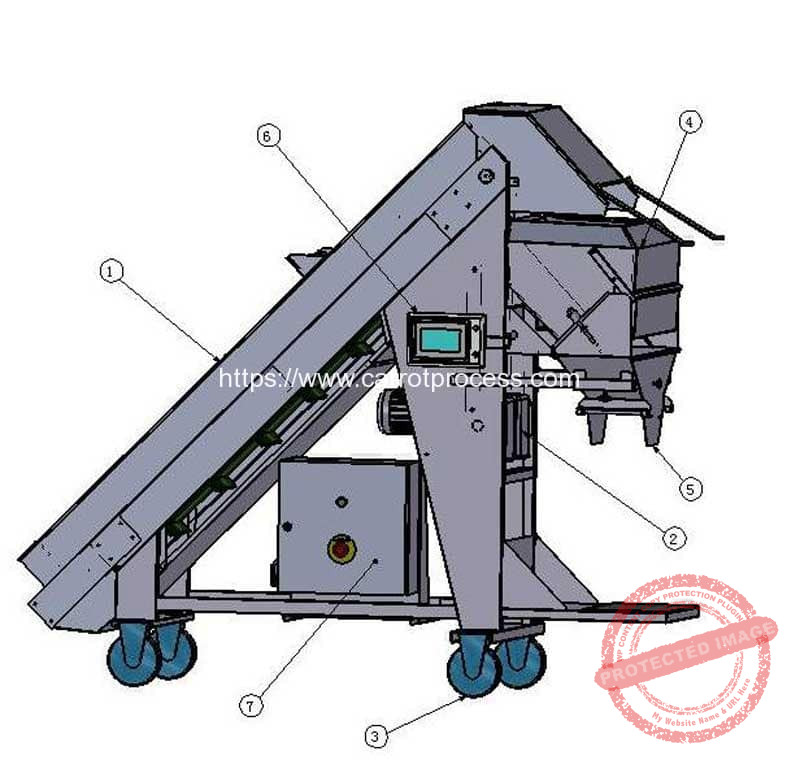

General Drawing of Automatic Carrot Weighting Bag Packing Machine

Automatic-Carrot-Weighting-Bag-Packing-Machine-General-Drawing

1.PVC conveyor system 2. Drives of conveyor 3. Chassis  4. Hopper with tensometer 5. Exchangeable sack fillers

6. electronic control unit  7. Electronic power box   8. Air inlet Φ8mm(in the back of electric power box)

Working Video of Carrot Weighting Bag Packing Machine
